How to Order Tungsten Alloy Bucking Bar

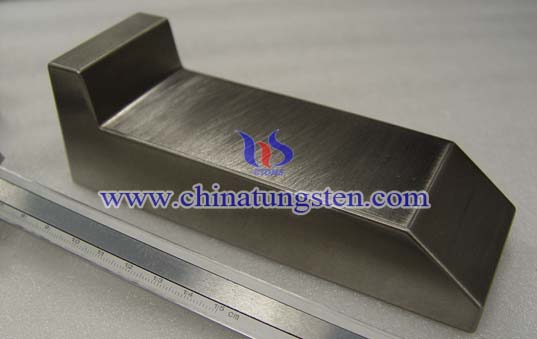

Tungsten Alloy Bucking Bar Picture

1.Spec.

AMS-T-21014:

AMS-T-21014 Class 1 Class 1 Class 2 Class 2
Composition(%) 90W7Ni3Fe 91W6Ni3Fe 92W5Ni3Fe 93W4Ni3Fe order
Density(g/cm3) 17.1+/-0.15 17.25+/-0.15 17.5+/-0.15 17.6+/-0.15 order
Tensile Strength(MPa) 900~1000 900~1000 900~1100 900~1100 order
Elongation (%) 18~29 17~27 16~26 16~24 order
Hardness(HRC) 24~28 25~29 25~29 26~30 order



AMS-T-21014 Class 3 Class 3 Class 4
Composition(%) 95W3Ni2Fe 96W3Ni1Fe 97W2Ni1Fe order
Density(g/cm3) 18.1+/-0.15 18.3+/-0.15 18.5+/-0.15 order
Tensile Strength(MPa) 920~1100 920~1100 920~1100 order
Elongation (%) 10~22 8~20 6~13 order
Hardness(HRC) 27~32 28~34 28~36 order

2. Bucking Bar Catalogue

bucking bar bucking bar bucking bar
DWG. No. 061304 DWG. No. 071431 DWG. No. 071432
Size (inch) 4×1×0.63 Size (inch) 2.5×1.5×0.75 Size (inch) 2.5×1.5×0.75
Appr.W.(kgs) 0.75 Appr. W. (kgs) 0.70 Appr. W. (kgs) 0.71
bucking bar bucking bar
DWG. No. 071433 DWG. No. 071440 DWG. No. 071472
Size (inch) 2.5×1.5×1.5 Size (inch) 3×1.6×0.5 Size (inch) 2×1×1
Appr. W. (kgs) 1.00 Appr. W. (kgs) 0.70 Appr. W. (kgs) 0.65
bucking bar bucking bar bucking bar
DWG. No. 071469 DWG. No. 071469b DWG. No. 081479
Size (inch) 4×0.9×1.8 Size (inch) 4×0.9×1.8 Size (inch) 4×1×2
Appr. W. (kgs) 1.40 Appr. W. (kgs) 1.40 Appr. W. (kgs) 1.00
bucking bar bucking bar bucking bar
DWG. No. 081503 DWG. No. 081480 DWG. No. 081481
Size (inch) 2×1.5×0.5 Size (inch) 3.5×1.5×1 Size (inch) 3.5×1.5×0.4
Appr. W. (kgs) 0.5 Appr. W. (kgs) 1.50 Appr. W. (kgs) 0.60
bucking bar bucking bar

bucking bar

DWG. No. 091664 DWG. No. 091665 DWG. No. 071439
Size (inch) 3.8×1.2×0.6 Size (inch) 3.3×1.2×0.5 Size (inch) 3×2×1.4
Appr. W. (kgs) 0.66 Appr. W. (kgs) 0.50 Appr. W. (kgs) 2.0

3. Shipment/Freight

Price term is usually based on FOB, CNF, CIF, any other requirement should be negotiated.

Express is usually DHL, TNT, FedEx, any other requirement should be negotiated.

Shipment by express means shipping door to door, shipment by air means shipping airport to airport, shipment by ocean means shipping sea port to sea port.

4. Bank Fee

Bank Fee will be charged by the intermediate foreign bank as foreign bank fee, usually Chinatungsten apply to the following:

Total Amount (USD) Bank Fee (USD)
<5000.00 30.00
≧5000.00 Born by Chinatungsten

5. Packing

Packing usually is carton, plywood box, iron box, which will be used depending on the total net weight of products. If there are any other requirements for packing, please do not hesitate to contact.
